Neutrik NAUSB3-B D-Size USB 3.0 Feed-Through – USB-A to USB-B (reversible) Black Shell

$27.23 INC GST NZD

Usually ships same day if ordered by 1pm

Neutrik
SKU: NAUSB3-B Categories: ,


Description

Neutrik NAUSB3-B D-Size USB 3.0 Feed-Through – USB-A to USB-B (reversible) Black Shell



Reversible USB 3.0 gender changer (type A and B), black D-housing

The NAUSB3-B is a reversible USB 3.0 feed through adapter. The standardized D-shape housing of the adapter fits into conventional patch panels and offers an additional protection for the connector.

Not compatible with NKUSB-* cables.



HIGHLIGHTS

  • USB 3.0 feedthrough adapter
  • Reversible insert offering type A or B on front or rear end
  • Standard D-shape housing
  • Removable screen for chassis grounding
  • Meets USB 3.0 specifications



USB 3.0 Performance
To meet the USB3.0 specifications the NAUSB3* chassis contain tight tolerance pin wiring and an improved ground connection due to an additional copper film between the USB jacks. As a result the feed through adapter guarantees permanent writing and reading speed > 200 MB/s.

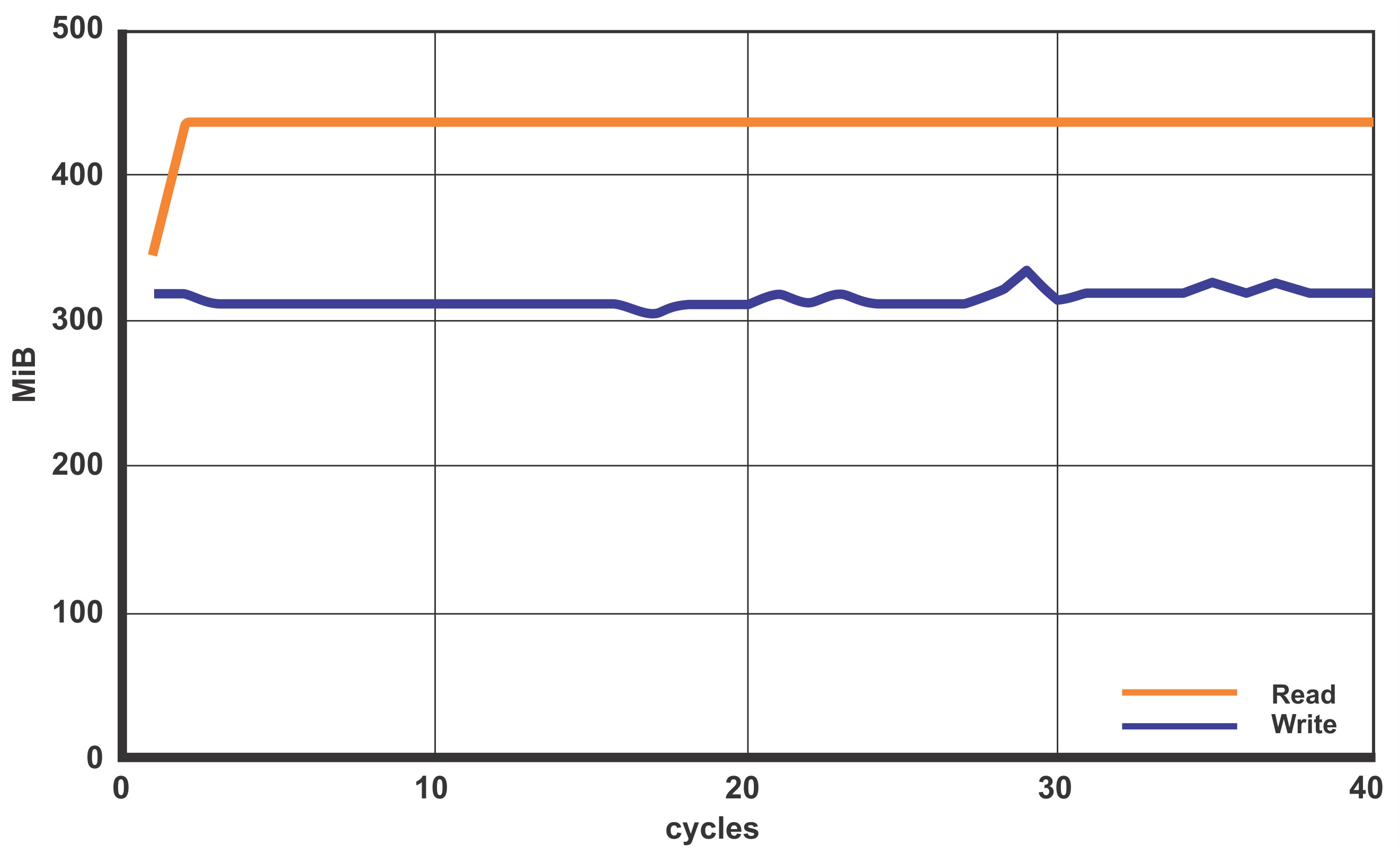

NAUSB3 Performance



Gender Changeable
Certain applications require that the USB 3.0 type A or type B jack is on front to connect end devices like hard disk, cameras, etc. The connector configuration of the NAUSB3* can be changed by rotating the USB insert without special tools.



USB Type A in front

NAUSB3

USB Type B in front

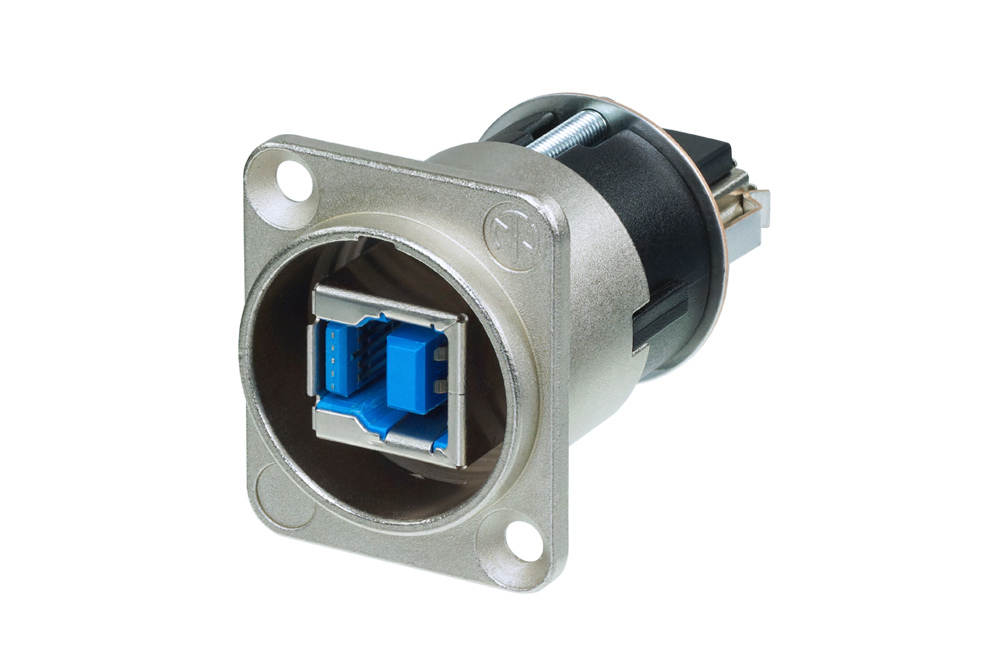

NAUSB3 TypeB in front

Optimized Ground Connection
An additional metal lip guarantees optimum ground connection from USB 3.0 jack to the D-size flange in order to achieve a consistent ground level. To eliminate the ground connection pinch off the metal lip.

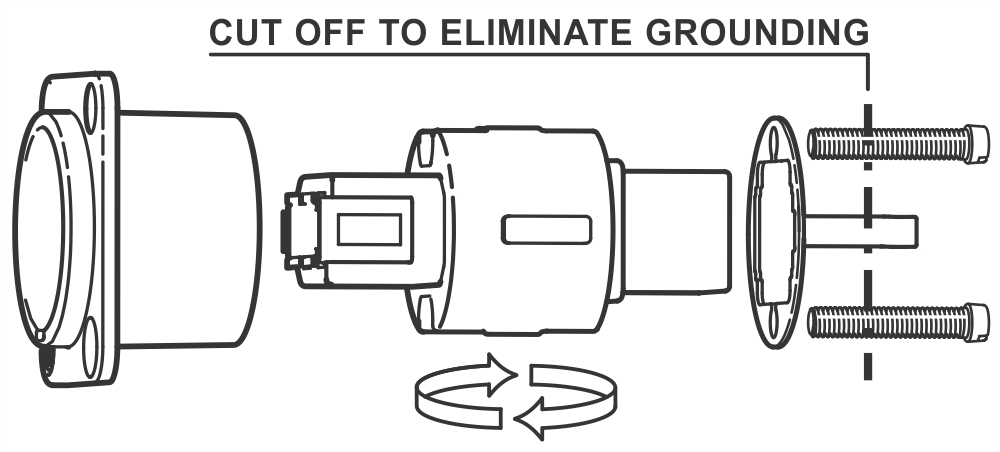

Remove grounding NAUSB3

Cable lengths
We recommend to use USB-IF certified cables to ensure error-free data transmission. Maximal length of USB-IF certified USB 3.0 passive cable is 2.0 meters.

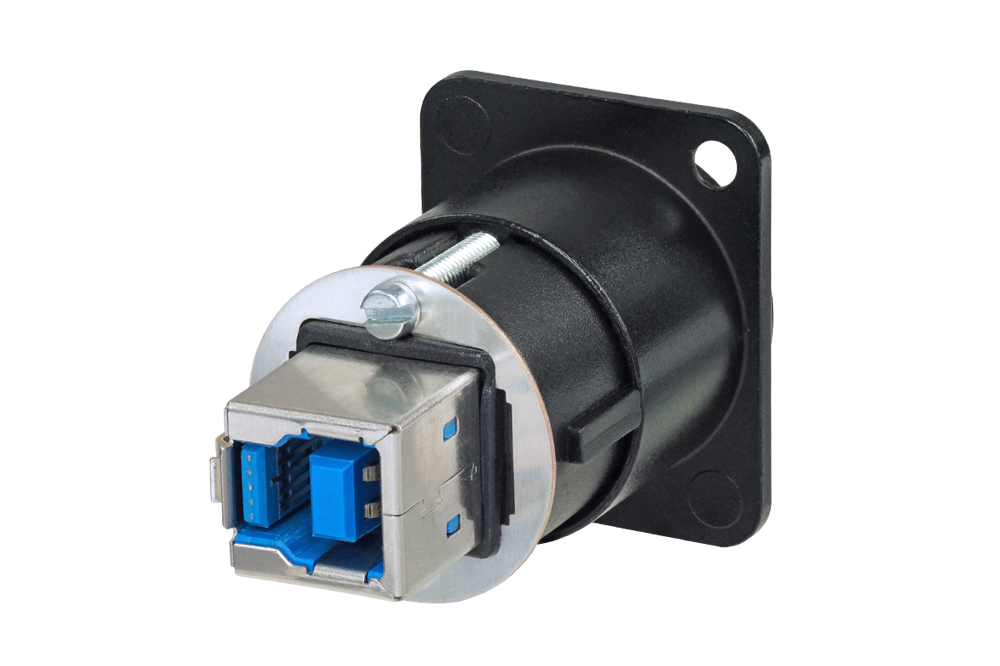

NAUSB3-B rear view

NAUSB3-B rear view

ELECTRICAL

  • Reading / Writing speed: >200 MB/s



MECHANICAL

  • Mounting direction: Front mounting
  • Chassis shape: D
  • Lifetime: > 1000 mating cycles



MATERIAL

  • Contact plating: Au
  • Contacts: Brass (CuZn39Pb3)
  • Insert: PBTP 15 % GR
  • Shell: Zinc diecast (ZnAl4Cu1)
  • Shell plating: Nickel



ENVIRONMENTAL

  • Flammability: UL 94 V-0
  • Standard compliance: USB 3.0 specifications
  • Temperature range: -25 °C to +85 °C



Additional information

Weight 0.03 kg
Dimensions 4 × 3 × 3 cm
